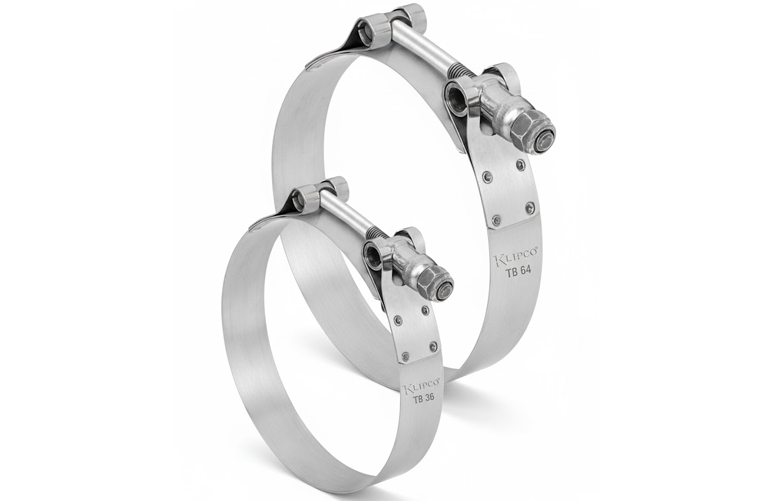

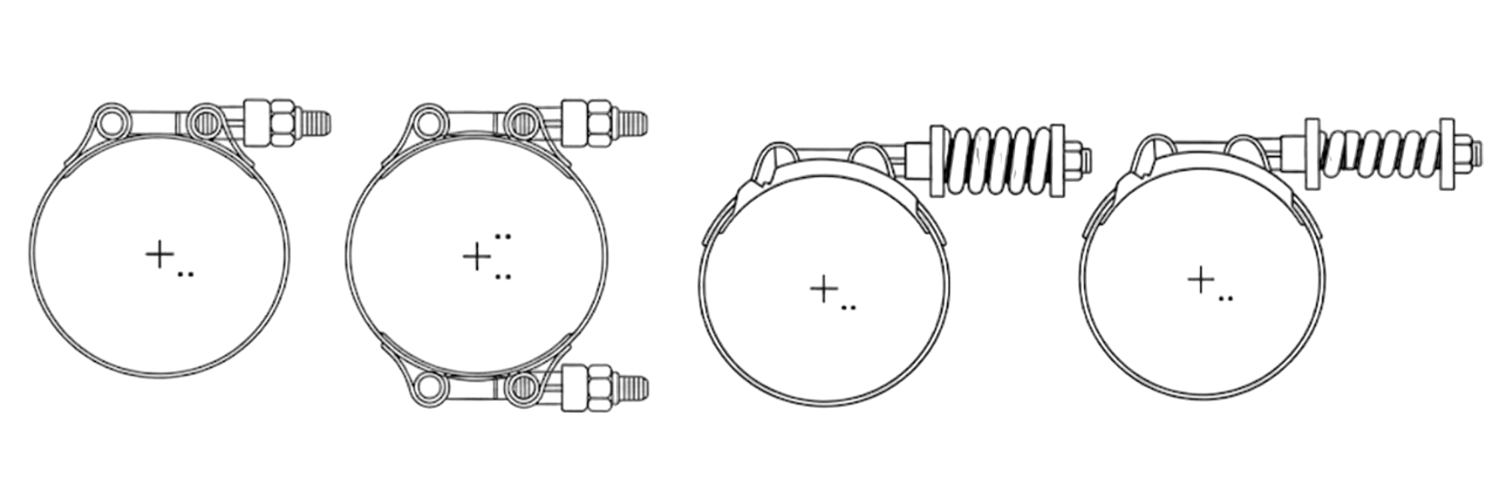

Klipco T-Bolt clamps are for heavy duty applications, provide leak proof connections, withstand temperature, corrosion resistant and vibration. Gives flat and uniform 360° circumference.
Clamps are made in composite materials and all Stainless Steel materials.
| T-Bolt Clamp Components | Materials | Dimensions | ||
|---|---|---|---|---|
| Composite | SS 304 | SS 316 | ||
| Band & Saddle | SS 201 / 202 | 304 | 316 | Width - 19 mm Thickness - 0.63 mm |
| T - Bolt | Carbon Steel | 300 / 400 | 316 | Q - 6.35 mm & 28 UNF Threads Length - 75 mm OR 82 mm |
| Trunnion, Wrapper, Cap | Mild Steel IS : 513 | 304 | 316 | --- |
| Nut Hex | CHQ MS Nyloc | 304 Lock Nut | 316 Lock Nut | A/F 11 mm |
All Mild steel Components are Zinc plated & yellow passivated. Clamps are suitable for installation Torque upto 7.9 Nm (70 in-lb)
| SIZE No. | OPEN DIA. MM | OPEN DIA. IN. | CLOSE DIA. MM | CLOSE DIA. IN. |
|---|---|---|---|---|
| 28 | 50.8 | 2 | 44.5 | 1 3/4 |
| 30 | 52.4 | 2 1/16 | 46.0 | 1 13/16 |
| 32 | 54.0 | 2 1/8 | 47.6 | 1 7/8 |
| 34 | 55.6 | 2 3/16 | 49.2 | 1 15/16 |
| 36 | 58.7 | 2 5/16 | 50.8 | 2 |
| 38 | 60.3 | 2 3/8 | 52.4 | 2 1/16 |
| 40 | 61.9 | 2 7/16 | 54.0 | 2 1/8 |
| 42 | 63.5 | 2 1/2 | 55.6 | 2 3/16 |
| 44 | 65.1 | 2 9/16 | 57.2 | 2 1/4 |
| 46 | 66.7 | 2 5/8 | 58.7 | 2 5/16 |
| 48 | 68.3 | 2 11/16 | 60.3 | 2 3/8 |
| 50 | 69.9 | 2 3/4 | 61.9 | 2 7/16 |
| 52 | 71.4 | 2 13/16 | 63.5 | 2 1/2 |
| 54 | 73.0 | 2 7/8 | 65.1 | 2 9/16 |
| 56 | 74.6 | 2 15/16 | 66.7 | 2 5/8 |
| 58 | 76.2 | 3 | 68.3 | 2 11/16 |
| 60 | 77.8 | 3 1/16 | 69.9 | 2 3/4 |
| 62 | 79.4 | 3 1/8 | 71.4 | 2 13/16 |
| 64 | 81.0 | 3 3/16 | 73.0 | 2 7/8 |
| 66 | 82.6 | 3 1/4 | 74.6 | 2 15/16 |
| 68 | 84.1 | 3 5/16 | 76.2 | 3 |
| 70 | 85.7 | 3 3/8 | 77.8 | 3 1/16 |
| 72 | 87.3 | 3 7/16 | 79.4 | 3 1/8 |
| 74 | 88.9 | 3 1/2 | 81.0 | 3 3/16 |
| 76 | 90.5 | 3 9/16 | 82.6 | 3 1/4 |
| 78 | 92.1 | 3 5/8 | 84.1 | 3 5/16 |
| 80 | 93.7 | 3 11/16 | 85.7 | 3 3/8 |
| 82 | 95.3 | 3 3/4 | 87.3 | 3 7/16 |
| 84 | 96.8 | 3 13/16 | 88.9 | 3 1/2 |
| 86 | 98.4 | 3 7/8 | 90.5 | 3 9/16 |
| 88 | 100.0 | 3 15/16 | 92.1 | 3 5/8 |
| 90 | 101.6 | 4 | 93.7 | 3 11/16 |
| 92 | 103.2 | 4 1/16 | 95.3 | 3 3/4 |
| 94 | 104.8 | 4 1/8 | 96.8 | 3 13/16 |
| 96 | 106.4 | 4 3/16 | 98.4 | 3 7/8 |
| 98 | 108.0 | 4 1/4 | 100.0 | 3 15/16 |
| 100 | 109.5 | 4 5/16 | 101.6 | 4 |
| 102 | 111.1 | 4 3/8 | 103.2 | 4 1/16 |
| 104 | 112.7 | 4 7/16 | 104.8 | 4 1/8 |
| 106 | 114.3 | 4 1/2 | 106.4 | 4 3/16 |
| 108 | 115.9 | 4 9/16 | 108.0 | 4 1/4 |
| 110 | 117.5 | 4 5/8 | 109.5 | 4 5/16 |
| 112 | 119.1 | 4 11/16 | 111.1 | 4 3/8 |
| 114 | 120.7 | 4 3/4 | 112.7 | 4 7/16 |
| 116 | 122.2 | 4 13/16 | 114.3 | 4 1/2 |
| 118 | 123.8 | 4 7/8 | 115.9 | 4 9/16 |
| 120 | 125.4 | 4 15/16 | 117.5 | 4 5/8 |
| 122 | 127.0 | 5 | 119.1 | 4 11/16 |
| 124 | 128.6 | 5 1/16 | 120.7 | 4 3/4 |
| 126 | 130.2 | 5 1/8 | 122.2 | 4 13/16 |
| 128 | 131.8 | 5 3/16 | 123.8 | 4 7/8 |
| 130 | 133.4 | 5 1/4 | 125.4 | 4 15/16 |
| 132 | 134.9 | 5 5/16 | 127.0 | 5 |
| 134 | 136.5 | 5 3/8 | 128.6 | 5 1/16 |
| 136 | 138.1 | 5 7/16 | 130.2 | 5 1/8 |
| 138 | 139.7 | 5 1/2 | 131.8 | 5 3/16 |
| 140 | 141.3 | 5 9/16 | 133.4 | 5 1/4 |
| 142 | 142.9 | 5 5/8 | 134.9 | 5 5/16 |
| 144 | 144.5 | 5 11/16 | 136.5 | 5 3/8 |
| 146 | 146.1 | 5 3/4 | 138.1 | 5 7/16 |
| 148 | 147.6 | 5 13/16 | 139.7 | 5 1/2 |
| 150 | 149.2 | 5 7/8 | 141.3 | 5 9/16 |
| 152 | 150.8 | 5 15/16 | 142.9 | 5 5/8 |
| 154 | 152.4 | 6 | 144.5 | 5 11/16 |
| 156 | 154.0 | 6 1/16 | 146.1 | 5 3/4 |
| 158 | 155.6 | 6 1/8 | 147.6 | 5 13/16 |
| 160 | 157.2 | 6 3/16 | 149.2 | 5 7/8 |
| 162 | 158.8 | 6 1/4 | 150.8 | 5 15/16 |
| 164 | 160.3 | 6 5/16 | 152.4 | 6 |
| 166 | 161.9 | 6 3/8 | 154.0 | 6 1/16 |
| 168 | 163.5 | 6 7/16 | 155.6 | 6 1/8 |
| 170 | 165.1 | 6 1/2 | 157.2 | 6 3/16 |
| 172 | 166.7 | 6 9/16 | 158.8 | 6 1/4 |
| 174 | 168.3 | 6 5/8 | 160.3 | 6 5/16 |
| 176 | 169.9 | 6 11/16 | 161.9 | 6 3/8 |
| 178 | 171.5 | 6 3/4 | 163.5 | 6 7/16 |
| 180 | 173.0 | 6 13/16 | 165.1 | 6 1/2 |
| 182 | 174.6 | 6 7/8 | 166.7 | 6 9/16 |
| 184 | 176.2 | 6 15/16 | 168.3 | 6 5/8 |
| 186 | 177.8 | 7 | 169.9 | 6 11/16 |
| 188 | 179.4 | 7 1/16 | 171.5 | 6 3/4 |
| 190 | 181.0 | 7 1/8 | 173.0 | 6 13/16 |
| 192 | 182.6 | 7 3/16 | 174.6 | 6 7/8 |
| 194 | 184.2 | 7 1/4 | 176.2 | 6 15/16 |
| 196 | 185.7 | 7 5/16 | 177.8 | 7 |
| 198 | 187.3 | 7 3/8 | 179.4 | 7 1/16 |
| 200 | 188.9 | 7 7/16 | 181.0 | 7 1/8 |
| 202 | 190.5 | 7 1/2 | 182.6 | 7 3/16 |
| 204 | 192.1 | 7 9/16 | 184.2 | 7 1/4 |
| 206 | 193.7 | 7 5/8 | 185.7 | 7 5/16 |
| 208 | 195.3 | 7 11/16 | 187.3 | 7 3/8 |
| 210 | 196.9 | 7 3/4 | 188.9 | 7 7/16 |
| 212 | 198.4 | 7 13/16 | 190.5 | 7 1/2 |
| 214 | 200.0 | 7 7/8 | 192.1 | 7 9/16 |
| 216 | 201.6 | 7 15/16 | 193.7 | 7 5/8 |
| 218 | 203.2 | 8 | 195.3 | 7 11/16 |
| 220 | 204.8 | 8 1/16 | 196.9 | 7 3/4 |
| 222 | 206.4 | 8 1/8 | 198.4 | 7 13/16 |
| 224 | 208.0 | 8 3/16 | 200.0 | 7 7/8 |
| 226 | 209.6 | 8 1/4 | 201.6 | 7 15/16 |
| 228 | 211.1 | 8 5/16 | 203.2 | 8 |
| 230 | 212.7 | 8 3/8 | 204.8 | 8 1/16 |
| 232 | 214.3 | 8 7/16 | 206.4 | 8 1/8 |
| 234 | 215.9 | 8 1/2 | 208.0 | 8 3/16 |
| 236 | 217.5 | 8 9/16 | 209.6 | 8 1/4 |
| 238 | 219.1 | 8 5/8 | 211.1 | 8 5/16 |
| 240 | 220.7 | 8 11/16 | 212.7 | 8 3/8 |
| 242 | 222.3 | 8 3/4 | 214.3 | 8 7/16 |
| 244 | 223.8 | 8 13/16 | 215.9 | 8 1/2 |
| 246 | 225.4 | 8 7/8 | 217.5 | 8 9/16 |
| 248 | 227.0 | 8 15/16 | 219.1 | 8 5/8 |
| 250 | 228.6 | 9 | 220.7 | 8 11/16 |
| 252 | 230.2 | 9 1/16 | 222.3 | 8 3/4 |
| 254 | 231.8 | 9 1/8 | 223.8 | 8 13/16 |
| 256 | 233.4 | 9 3/16 | 225.4 | 8 7/8 |
| 258 | 235.0 | 9 1/4 | 227.0 | 8 15/16 |
| 260 | 236.5 | 9 5/16 | 228.6 | 9 |
| 262 | 238.1 | 9 3/8 | 230.2 | 9 1/16 |
| 264 | 239.7 | 9 7/16 | 231.8 | 9 1/8 |
| 266 | 241.3 | 9 1/2 | 233.4 | 9 3/16 |
| 268 | 242.9 | 9 9/16 | 235.0 | 9 1/4 |
| 270 | 244.5 | 9 5/8 | 236.5 | 9 5/16 |
| 272 | 246.0 | 9 11/16 | 238.1 | 9 3/8 |
| 274 | 247.7 | 9 3/4 | 239.7 | 9 7/16 |
| 276 | 249.2 | 9 13/16 | 241.3 | 9 1/2 |
| 278 | 250.8 | 9 7/8 | 242.9 | 9 9/16 |
| 280 | 252.4 | 9 15/16 | 244.5 | 9 5/8 |
| 282 | 254.0 | 10 | 246.1 | 9 11/16 |
| 284 | 255.6 | 10 1/16 | 247.7 | 9 3/4 |
| 286 | 257.2 | 10 1/8 | 249.2 | 9 13/16 |
| 288 | 258.8 | 10 3/16 | 250.8 | 9 7/8 |
| 290 | 260.4 | 10 1/4 | 252.4 | 9 15/16 |
| 292 | 261.9 | 10 5/16 | 254.0 | 10 |
| 294 | 263.5 | 10 3/8 | 255.6 | 10 1/16 |
| 296 | 265.1 | 10 7/16 | 257.2 | 10 1/8 |
| 298 | 266.7 | 10 1/2 | 258.8 | 10 3/16 |
| 300 | 268.3 | 10 9/16 | 260.4 | 10 1/4 |
| 302 | 269.9 | 10 5/8 | 261.9 | 10 5/16 |
| 304 | 271.5 | 10 11/16 | 263.5 | 10 3/8 |
| 306 | 273.1 | 10 3/4 | 265.1 | 10 7/16 |
| 308 | 274.6 | 10 13/16 | 266.7 | 10 1/2 |
| 310 | 276.2 | 10 7/8 | 268.3 | 10 9/16 |
| 312 | 277.8 | 10 15/16 | 269.9 | 10 5/8 |
| 314 | 279.4 | 11 | 271.5 | 10 11/16 |
| 316 | 281.0 | 11 1/16 | 273.1 | 10 3/4 |
| 318 | 282.6 | 11 1/8 | 274.6 | 10 13/16 |
| 320 | 284.2 | 11 3/16 | 276.2 | 10 7/8 |
| 322 | 285.8 | 11 1/4 | 277.8 | 10 15/16 |
| 324 | 287.3 | 11 5/16 | 279.4 | 11 |
| 326 | 288.9 | 11 3/8 | 281.0 | 11 1/16 |
| 328 | 290.5 | 11 7/16 | 282.6 | 11 1/8 |
| 330 | 292.1 | 11 1/2 | 284.2 | 11 3/16 |
| 332 | 293.7 | 11 9/16 | 285.8 | 11 1/4 |
| 334 | 295.3 | 11 5/8 | 287.3 | 11 5/16 |
| 336 | 296.9 | 11 11/16 | 288.9 | 11 3/8 |
| 338 | 298.5 | 11 3/4 | 290.5 | 11 7/16 |
| 340 | 300.0 | 11 13/16 | 292.1 | 11 1/2 |
| 342 | 301.6 | 11 7/8 | 293.7 | 11 9/16 |
| 344 | 303.2 | 11 15/16 | 295.3 | 11 5/8 |
| 346 | 304.8 | 12 | 296.9 | 11 11/16 |
