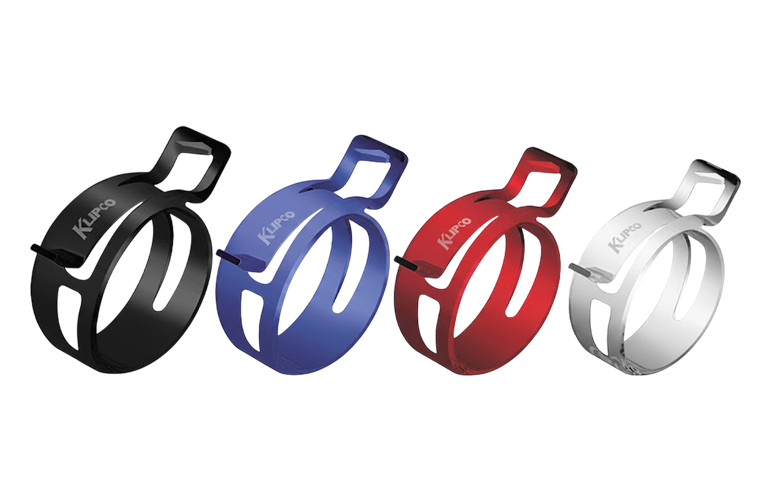

Spring Bend

Other sizes on enquiry	Range in 15mm BAND WIDTH available
Material	Spring steel D/N : 17222 : MK-75, or 50CRV4/51CRV4, BS : CS80 SAE :1075 - CK-75 IS : 2507 Grade 6 or equivalent
Heat Treatment	Austempering to HV 470/520
Finish	Iron ZINC and/or as per requirement
Colour	White - Black- Grey or Blue

Enquire Now

NOM SIZE OF CLIP DIA	RANGE ±0.2	BAND		APPLICABLE HOSE OD	HOLDING FORCE MIN. KG.	NOM SIZE OF CLIP DIA	RANGE	THICKNESS	APPLICABLE HOSE OD	HOLDING FORCE N
NOM SIZE OF CLIP DIA	RANGE ±0.2	T	W	APPLICABLE HOSE OD	HOLDING FORCE MIN. KG.	NOM SIZE OF CLIP DIA	RANGE	THICKNESS	APPLICABLE HOSE OD	HOLDING FORCE N
6.8	6.8 - 8.3	0.6	6	7.5	6	12	12 - 142		12.5 - 13.8	50
7.8	7.8 - 9.5	0.6	6	8.5	7	13	13.3 - 15.8		12.5 - 13.6	50
8.6	8.6 - 10.6	0.7	8	9.4	7	14	14 - 16.5		18 - 16.5	65
9.4	9.4 - 11.3	0.7	8	10.2	7	16	14.9 - 12.5		15 - 7	65
10	10 - 12.2	0.7	8	11.1	8	17	15.6 - 18.8		16 - 17.7	65
11	11 - 13	0.8	8	12	8	18	16 - 19		17 - 20	80
11.6	11.6 - 13.6	0.8	8	12.5	10	19	17.8 - 20.2	0.8	19 - 20	130
12	12 - 14.2	0.8	8	13	10	20	18.4 - 21.6		19.5 - 20.5	130
12.5	12.5 - 15	0.8	8	13.5	12	22	20.5 - 24.2		21.5 - 23	140
13.1	13.1 - 15.5	0.9	12	14	12	23	21 - 24.7		22 - 24	160
13.8	13.8 - 16.5	0.9	12	15	15	24	22 - 26		23 - 25	180
14	14 - 17	1.0	10	15.2	15	25	23.5 - 26.8		24 - 26	180
14.8	15 - 17.7	1.0	10	16	15	26	24.3 - 28		26 - 27	180
15.5	15.5 - 18.2	1.0	12	17	15	27	25.2 - 28	1.3	26.5 - 28	200
16	16 - 19.5	1.0	12	18	17	28	26.1 - 30.2		27 - 29	200
17.8	17.8 - 20.2	1.0	12	19.5	17	29	27 - 31.5		28 - 30	200
18.5	18.5 - 22	1.0	12	20	18	30	28 - 32.5		29 - 31.5	200
19.8	19.8 - 24	1.0	12	21.3	18	32	29.5 - 34.5		30 - 33	200
20.8	20.8 - 26	1.0	12	23	20	34	30.6 - 36.4		31 - 34.5	210
21.7	21.7 - 27	1.0	12	23.5	20	35	31.5 - 38		32.5 - 37	210
23	23 - 28	1.2	12	25	20	36	32.5 - 39		33 - 38	210
25	25 - 29	1.2	18	27	20
26	26 - 31.5	1.2	12	28	22
26.2	26.2 - 32	1.2	12	28.5	22	40	35.5 - 42.5		36.5 - 41.5	220
