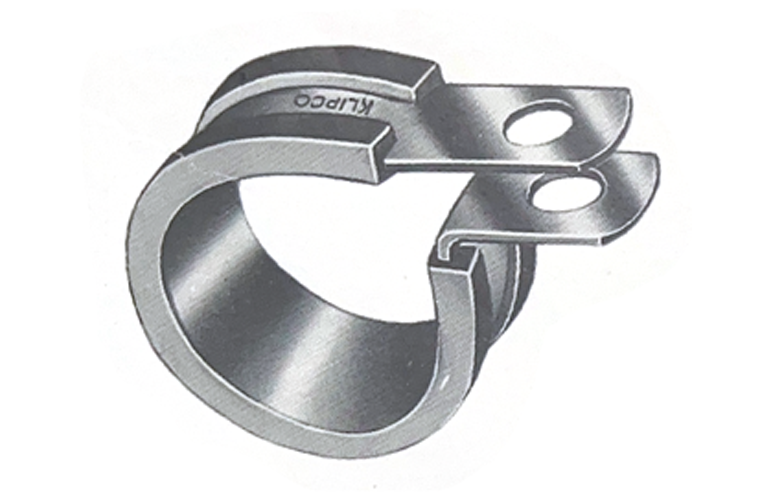

Retaining Clips with rubber cushioning offer an elastic fastening with effective vibration damping.
| RUBBER-PROFILE: PROPERTIES | POLYCHLOROPRENE | RESISTANCE AGAINST | |
|---|---|---|---|
| Tensile Strength Kg/cm³ | 100 | Petroleum | satisfactory |
| Elongation at Break % | 200 | Oil and Greases | good |
| Shore Hardness A | 70 ± 5 | Alcohols | good |
| Temperature °C | -35° to + 120° | Acids | good |
| Alkalis | good | ||
| Wear Resistance | good | ||
| Weathering and Ozone Resistance | very good | ||
| Ageing and Light Crack Resistance | very good | ||
| b | b1 | s2 |
|---|---|---|
| 9 | 12.5 | 1 |
| 12 | 15 | 1.2 |
| 15 | 18.5 | 1.5 |
| 20 | 25 | 2 |
| 25 | 31 | 3 |
| 30 | 36 | 3 |

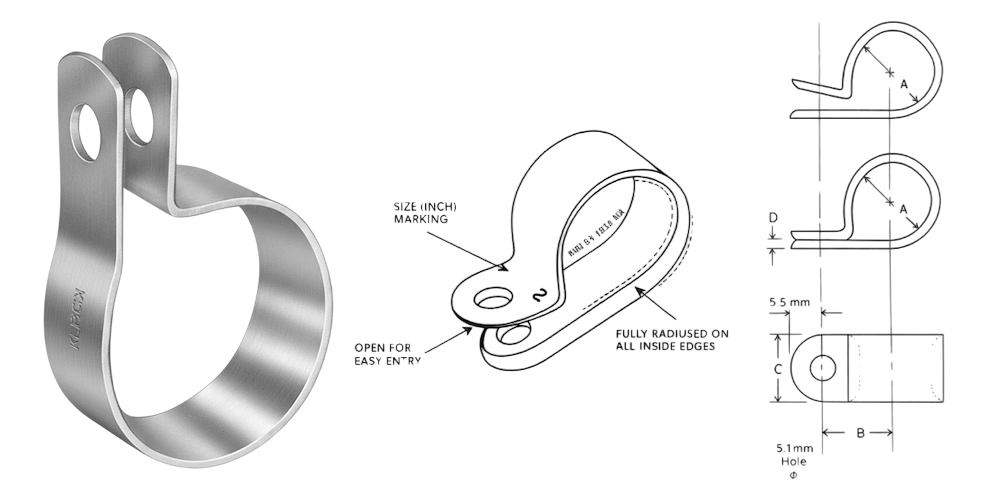

| DIMENSIONS | ||||
|---|---|---|---|---|
| A | A₁ | B | C | D |
| 3.2 | 2.9 | 8.3 | 9.5 | 1.3 |
| 4.8 | 4.4 | 9.6 | ||
| 6.3 | 5.9 | 10.4 | ||
| 7.9 | 7.5 | 11.2 | ||
| 9.5 | 9.1 | 12.0 | ||
| 11.1 | 10.7 | 13.2 | ||
| 12.7 | 12.3 | 14.0 | ||
| 3.2 | 2.9 | 9.1 | 12.7 | 1.5 |
| 4.8 | 4.4 | 10.7 | ||
| 6.3 | 5.9 | 11.6 | ||
| 7.9 | 7.5 | 12.6 | ||
| 9.5 | 9.1 | 13.4 | ||
| 11.1 | 10.7 | 14.2 | ||
| 12.7 | 12.3 | 15.0 | ||
| 14.3 | 13.9 | 15.8 | ||
| 15.9 | 15.5 | 16.6 | ||
| 17.4 | 17.1 | 19.1 | ||
| 19.0 | 18.6 | 19.9 | ||
| 20.6 | 20.2 | 20.7 | ||
| 22.2 | 21.9 | 21.5 | ||
| 25.4 | 25.0 | 23.1 | ||
| 28.6 | 28.0 | 24.6 | ||
| 30.1 | 29.6 | 25.4 | ||
| 31.8 | 31.2 | 27.0 | ||
| 34.9 | 34.3 | 28.6 | ||
| 38.1 | 37.5 | 30.1 | ||
