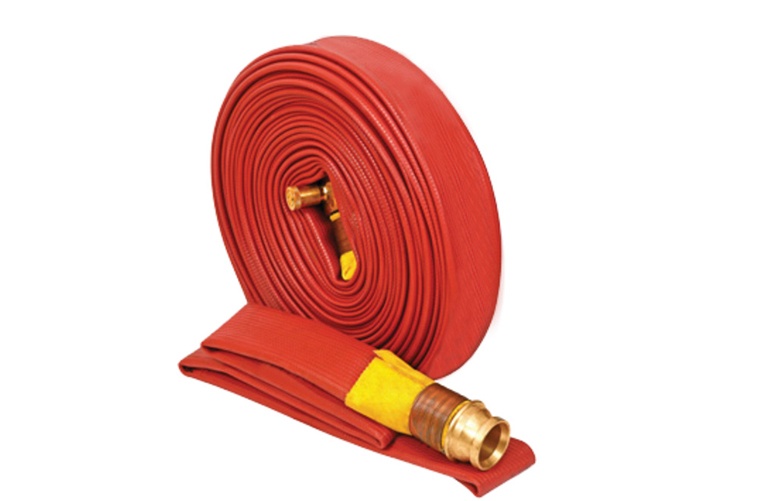

Chemical Resistant Firefighting Hose

Chemical Resistant Firefighting Hose

Description:

Heavy Duty Fully Extruded “Thru-the-Weave” Delivery Hose
100% High T enacity Polyester / Polyamide Circular Woven Reinforcement
Embedded in a high quality special grade of Nitrile / PVC Rubber Compound
Ribs on External Cover provides very high Abrasion Resistance and Ease of Handling
Resistant to Oil, Fuel & Chemicals, Resistant to Kink
Extremely Long Service Life
Maintenance Free & Easy to Repair
ISI Marked
UL Listed
Germanischer Lloyd’s Approved
M.E.D. 96/98/EC Approved
Conforming to BS 6391:2009 Type 3
Available Colors – Red, Yellow, Blue, Black

Specifications

Diameter Bursting Pressure Working Pressure
in mm in inch in bar in psi in bar in psi
25 1 60 870 18 260
38 1 1/2 60 870 18 260
45 1 3/4 60 870 18 260
52 2 55 800 17 250
65 2 1/2 55 800 17 250
70 2 3/4 50 725 16 235
76 3 45 650 14 205
102 4 40 580 12 175
127 5 35 510 10 145
152 6 30 435 10 145
