DWC Pipe

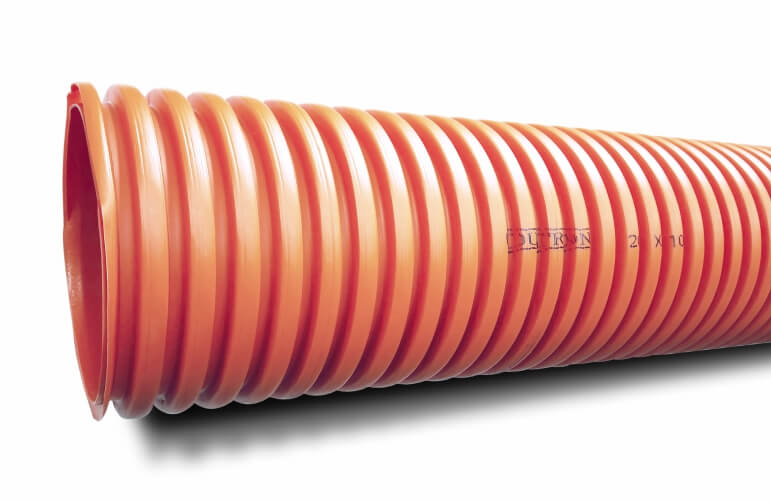

DUTRON DWC Pipes Dutron Double Wall Corrugated (DWC) Pipe manufactured from HDPE is an ideal conduit system for protecting electrical and telecom cables. The outer layer having corrugation and inner layer with plain and smooth surface gives excellent mechanical and electrical properties for cable ducting compared to G.I., RCC and PVC. Dutron DWC pipes are manufactured as per IS: 16205 (part 24):2017.

Composition : Manufactured from HDPE having outer layer corrugated and inner layer with plain and smooth.

Product Specifications:

Key Features
  • ⊚ Stronger than GI, RCC, or PVC solid wall pipes
  • ⊚ Long life span
  • ⊚ Easy to transport, handle, and install due to light weight
  • ⊚ Low installation cost
  • ⊚ Excellent impact strength
  • ⊚ Excellent chemical, corrosion, and abrasion resistance
  • ⊚ Flame retardant
  • ⊚ Leak proof
  • ⊚ UV resistant
  • ⊚ Made from anti-rodent material
  • ⊚ Environment friendly
  • ⊚ Can withstand heavy external loads when properly buried
  • ⊚ Easy jointing and installation
  • ⊚ Flexible enough to adjust to obstacles during installation
Applications
  • ⊚ Protection of cables in suburban sections
  • ⊚ Protection of cables at railroads, crossings, and platforms
  • ⊚ Protection of cables across rivers, canals, and culverts
  • ⊚ Protection of power cables in distribution networks
  • ⊚ Used as protective casing for street lighting cables
Available Sizes
  • ⊚ 50 mm to 120 mm O.D.
Colours
  • ⊚ Orange
  • ⊚ Black

Specifications

Duct Size / Nominal OD (mm) Nominal ID (mm) Standard Length (Mtrs)
50 38 6
63 51 6
75 63 6
90 76 6
110 96 6
120 103 6
