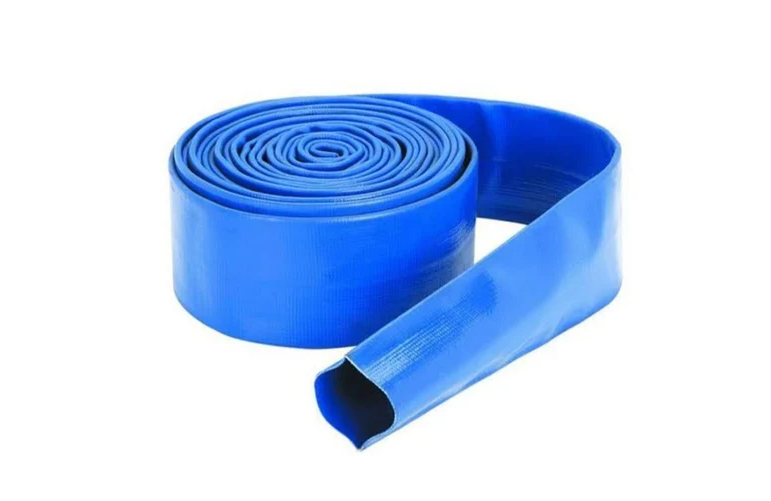

DUPLON Flat Hose is a superior replacement to conventional cotton/Lapeta hose pipes. It is the first and only product made in India of this kind.
Composition: Duplon Flat Hose is composed of flexible PVC with synthetic yarn reinforcement to provide extra strength.
| Key Features |
|
|---|---|
| Applications | As delivery/discharge hose, in agriculture, at construction sites, mines and quarries, marine use in ships, transferring corrosive chemicals and liquids etc. |
| Available sizes | 25 mm to 300 mm I.D. |
| Pressure at 30°C |
|
| color | Blue |
| Nominal size | Inside dia. | Wall Thickness | Pressure at 30°C | Standard Lengths | |
|---|---|---|---|---|---|
| mm | mm | mm | Working Pressure – kg/cm² | Bursting Pressure – kg/cm² | mtrs. |
| 25 | 26 ± 1 | 1.0 ± 0.1 | 4 | 11 to 12 | 50/60/100 |
| 40 | 41 ± 1 | 1.0 ± 0.1 | 4 | 11 to 12 | 50/60/100 |
| 50 | 53 ± 1 | 1.1 ± 0.1 | 3 | 8 to 9 | 50/60/100 |
| 65 | 66 ± 1 | 1.2 ± 0.1 | 3 | 6 to 7 | 50/60/100 |
| 75 | 82 ± 1 | 1.2 ± 0.1 | 3 | 6 to 7 | 50/60/100 |
| 100 | 104 ± 2 | 1.2 ± 0.1 | 3 | 6 to 7 | 50/60/100 |
| 150 | 154 ± 3 | 1.8 ± 0.1 | 3 | 5 to 6 | 50/60/100 |
| 200 | 204 ± 3 | 2.3 ± 0.2 | 2 | 3 to 4 | 50/60/100 |
| 250 | 257 ± 3 | 2.5 ± 0.2 | 2 | 2.5 to 3 | 50/60/100 |
| 300 | 310 ± 3 | 2.7 ± 0.3 | 2 | 2.5 to 3 | 50/100 |
* Application of Flat Hose is for delivery purpose, consider maximum bursting pressure 1.5 to 2.5 times the working pressure for better application of the hose.
