Duplon Polyurethane Hose offers exceptional flexibility, durability, and light weight — making it ideal for demanding industrial applications. Its superior resistance to abrasion and high temperature performance makes it the preferred choice for industries that convey abrasive materials under challenging conditions.
Composition: Made from premium polyurethane with embedded copper-coated spring steel wire for added strength and durability.
| Key Features |
|
|---|---|
| Applications | Duplon PU hose 0.4mm Thickness is ideal for waste (dust) collection system, removal of cotton dust particles during bale processing, waste removal during combing process, also used in ring frame and compact spinning, comber and speed frame, carding, draw frames, also in blow room for transport of light materials, O.H.T.C system and humidification systems) Ceramic ( during various stages of production such as raw material handling, dust extraction and collection, spray dyers and processing equipment and tile pressing & gazing etc.), Woodworking (Efficient suction of sawdust, wood chips & shavings from machinery, removal of larger wood waste during cutting, edge benders, panel saws & sanders, planers and jointer, and centralized vacuum system etc.) and conveying of air, fumes, dust and light materials in packaging, plastic processing, food, and pharmaceutical sectors. |
| Available sizes | 51mm to 305mm I. D. |
| Pressure at 30°C |
|
| Temperature Range |
|
| color | Transparent with copper coated steel wire helix |
| Size (Inch) | ID (mm) | OD (mm) | Wall Thickness (mm) | Pressure (Bar) | Vacuum (Bar) | Bending Radius (mm) | Length (Mtrs) |
|---|---|---|---|---|---|---|---|
| 2 | 51 | 59 | 0.4 | 0.70 | 0.240 | 59 | 15 |
| 2¼ | 60 | 68 | 0.4 | 0.56 | 0.210 | 68 | 15 |
| 2½ | 63 | 71 | 0.4 | 0.55 | 0.180 | 71 | 15 |
| 3 | 76 | 84 | 0.4 | 0.47 | 0.130 | 84 | 15 |
| 3¼ | 80 | 88 | 0.4 | 0.43 | 0.120 | 88 | 15 |
| 4 | 102 | 110 | 0.4 | 0.35 | 0.080 | 110 | 15 |
| 5 | 127 | 135 | 0.4 | 0.28 | 0.060 | 135 | 15 |
| 6 | 152 | 160 | 0.4 | 0.17 | 0.050 | 160 | 15 |
| 8 | 203 | 211 | 0.4 | 0.13 | 0.030 | 211 | 15 |
| 10 | 254 | 262 | 0.4 | 0.10 | 0.015 | 262 | 10 |
| 12 | 305 | 313 | 0.4 | 0.09 | 0.010 | 313 | 10 |
| Key Features |
|
|---|---|
| Applications | Duplon PU hose 0.6mm Thickness is best for light to moderate-duty suction and conveying where flexibility is needed but material being conveyed still has some abrasiveness, such as dust extraction in woodworking, textile, and paper industries, conveying light plastic pellets, fibers, fluff, and granules, Industrial vacuum cleaners (light-duty use), Plastic processing and recycling, De-dusting systems with low to medium vacuum pressures. |
| Available sizes | 25mm to 305mm I. D. |
| Pressure at 30°C |
|
| Temperature Range |
|
| color | Transparent with copper coated steel wire helix |
| Size (Inch) | ID (mm) | OD (mm) | Wall Thickness (mm) | Pressure (Bar) | Vacuum (Bar) | Bending Radius (mm) | Length (Mtrs) |
|---|---|---|---|---|---|---|---|
| 1 | 25 | 32 | 0.6 | 1.600 | 0.360 | 32 | 15 |
| 1½ | 40 | 48 | 0.6 | 1.020 | 0.335 | 48 | 15 |
| 2 | 51 | 59 | 0.6 | 0.910 | 0.312 | 59 | 15 |
| 3 | 76 | 84 | 0.6 | 0.611 | 0.169 | 84 | 15 |
| 4 | 102 | 110 | 0.6 | 0.455 | 0.104 | 110 | 15 |
| 10 | 254 | 262 | 0.6 | 0.130 | 0.020 | 262 | 10 |
| 12 | 305 | 313 | 0.6 | 0.117 | 0.013 | 313 | 10 |
| Key Features |
|
|---|---|

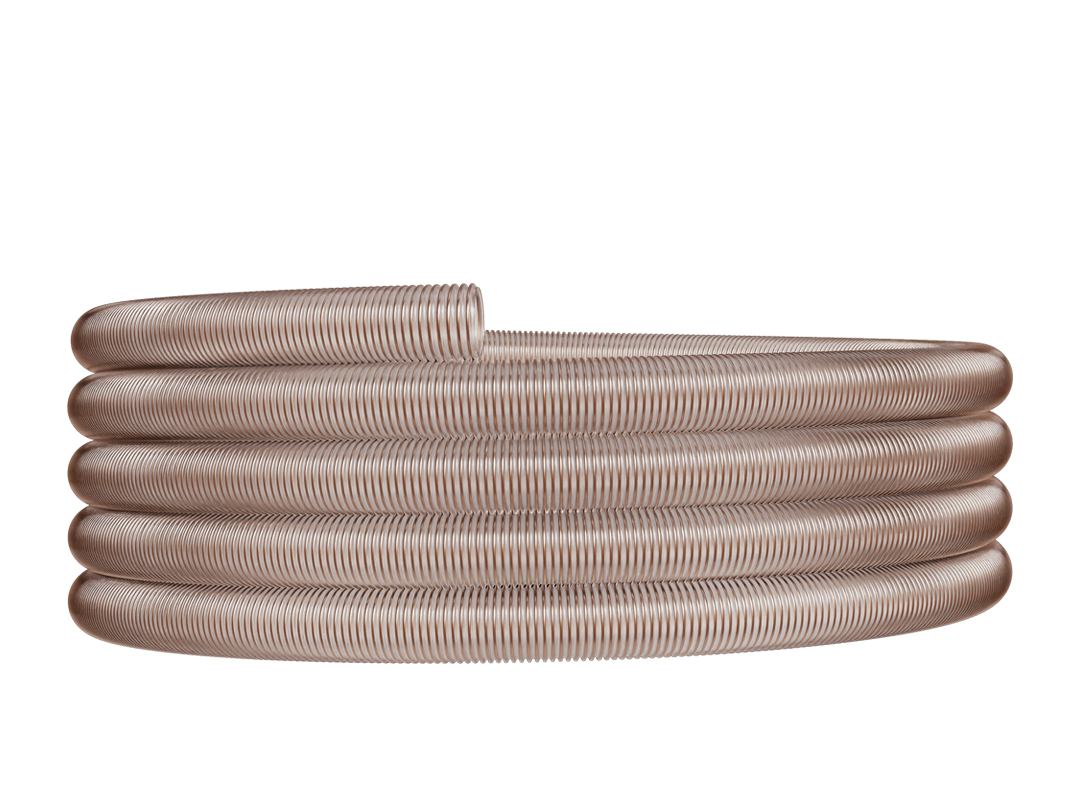

| Applications | Duplon PU hose 0.9mm Thickness Food Grade Hose widely used in De-dusting and suction plants, Food and pharma industries, Textile industries, Plastics and processing, Wood working and carpentry, Paper Manufacturing and Printing, Industrial vacuum cleaners and many more where conveying of abrasive solids such as dust, granules, powder, fiber and chips is required in both light and medium operations. |
| Available sizes | 51mm to 102mm I. D. |
| Pressure |
|
| Temperature Range |
|
| Colour | Transparent with copper coated steel wire helix |
| Size (Inch) | ID (mm) | OD (mm) | Wall Thickness (mm) | Pressure (Bar) | Vacuum (Bar) | Bending Radius (mm) | Length (Mtrs) |
|---|---|---|---|---|---|---|---|
| 2 | 51 | 59 | 0.9 | 1.370 | 0.365 | 90 | 15 |
| 2½ | 63 | 70 | 0.9 | 1.050 | 0.205 | 113 | 15 |
| 3 | 76 | 84 | 0.9 | 0.920 | 0.195 | 155 | 15 |
| 4 | 102 | 110 | 0.9 | 0.685 | 0.115 | 204 | 15 |
| Key Features |
|
|---|---|

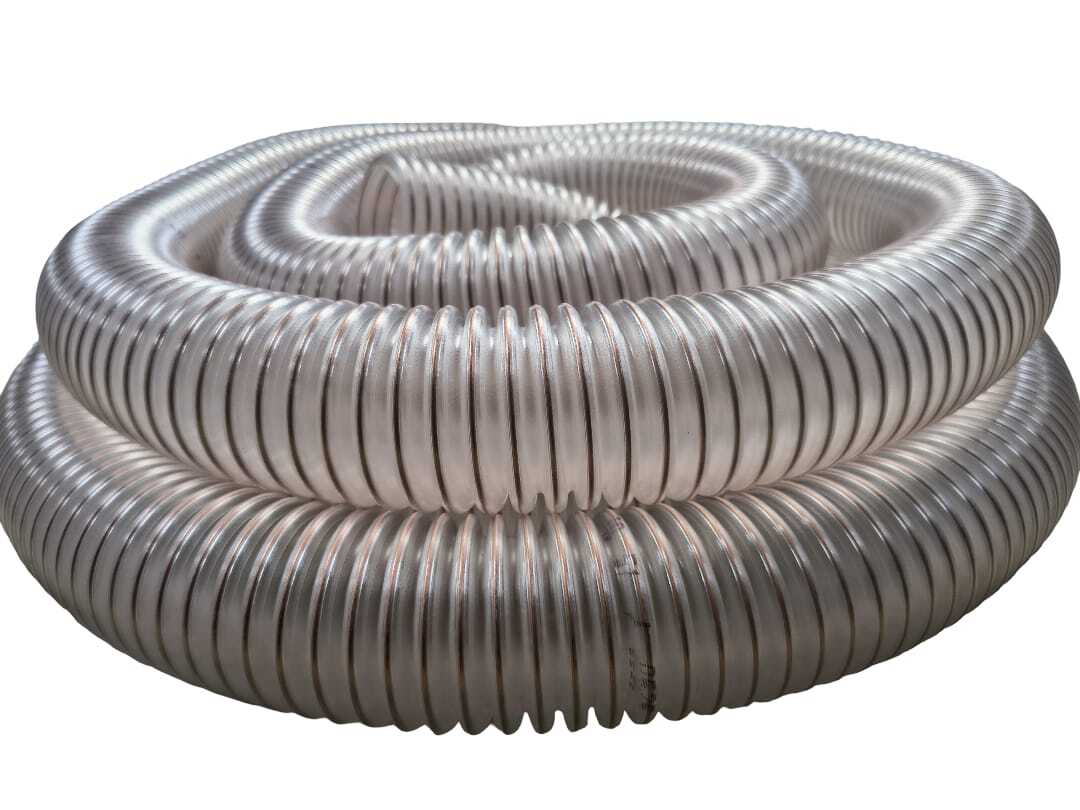

| Applications | Duplon PU hose 1.5mm Thickness Food Grade Hose widely used in suction & conveying of high flow rates of hot & abrasive solids such as powder, chips & granules. Used in granule conveying systems, industrial vacuum cleaners, printing machines, blowers & compressors. |
| Available sizes | 51mm & 102mm I. D |
| Pressure |
|
| Temperature Range |
|
| Colour | Transparent with copper coated steel wire helix |
| Size (Inch) | ID (mm) | OD (mm) | Wall Thickness (mm) | Pressure (Bar) | Vacuum (Bar) | Bending Radius (mm) | Length (Mtrs) |
|---|---|---|---|---|---|---|---|
| 2 | 51 | 59 | 1.5 | 2.330 | 0.835 | 96 | 15 |
| 4 | 102 | 110 | 1.5 | 1.190 | 0.355 | 183 | 15 |
